Model
MT-F

Item specifics

Function
decoiling machine
Feature
decoiler 5 tons
Name
steel coil uncolier
Compact
metal stamping press machine
Usage
steel trip uncoiler
attribute
hydraulic expansion

Product review

Description

MT-F uncoiler for metal stamping
Photo Show
Description

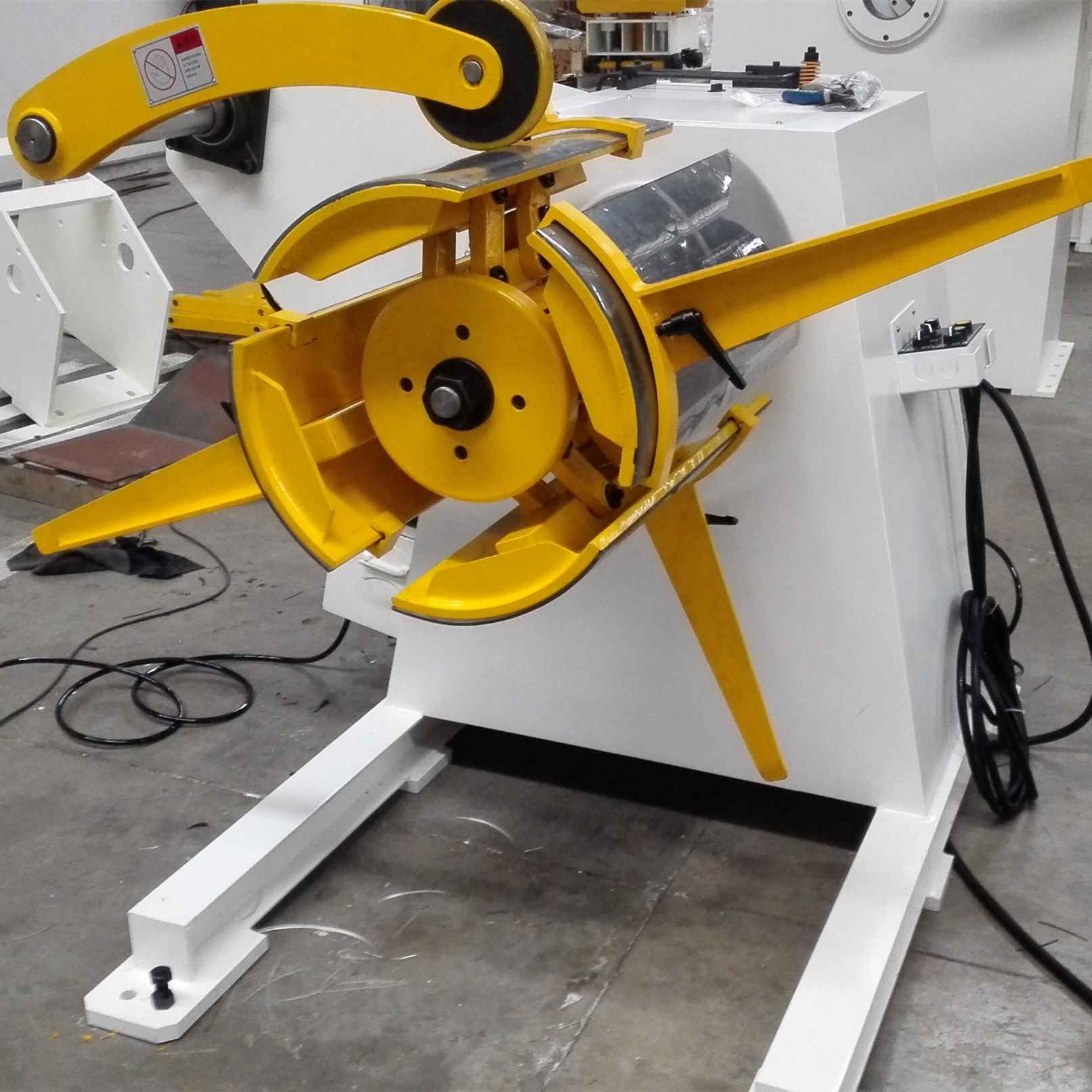

MT-F uncoiler with pressing arm

1, Pressing arm is suggested when metal strip thickness above 2mm; It is with pneumatic power;

2, With black coating, mandrel is stronger than MT decoiler; Hydraulic expansion is standard;

3, Coil keeper to fix the material;

4, With Delta inverter, the speed can be stable and motor can be protected;

5, The height can be customized according to the feeding height.
specification
Model
MT-400F
MT-500F
MT-600F
MT-700F
MT-800F
Coil width(mm)
400
500
600
700
800
Coil thickness(mm)
0.2-3.2
Coil inner diameter
450-530mm
Coil outer diameter
1200mm
Material weight(kg)
3000
3000
5000
5000
5000
Expansion
Hydraulic
Pressing arm
Pneumatic Type
Inverter
Delta, Taiwan
Application
MT-F decoiler machine is uncoiling for heavy weight sheet metal coil. In a standard metal stamping line, decoiler is always compacted with auto coil feeder machine and press. It suits for metal coil sheet like aluminum, carbon steel, stainless steel, galvanized steel, copper, etc.

MT-500F

MT-500F
decoiler with pneumatic pressing arm
exported to Poland


Metal stamping solution suggestion:
Decoiler & Straightener + NC servo feeder + Press


MT-F

MT-F
uncoiler machine
for metal stamping
exported to Indonesia


Metal stamping solution suggestion:
Decoiler & Straightener + NC servo feeder + Press
