GL-500H decoiler and straightener combo machine for thick metal strip feeding
- Model
- GL-500H
Item specifics
- Function
- decoiling and straightening combo machine
- Feature
- uncoiler and leveller
- Name
- coil unwinding and flating machine
- Compact
- press and feeder machine
- Usage
- coil sheet decoiling and straightening machine
- attribute
- straightener uncoiler for thick steel sheet
Review
Description

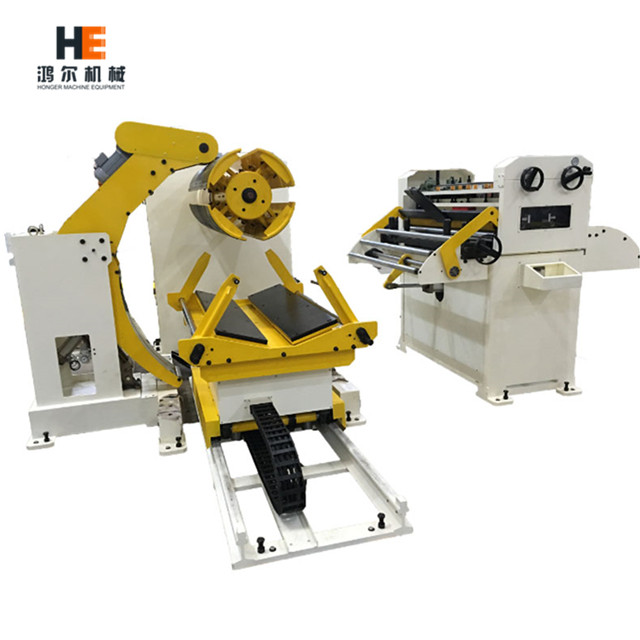

GL-500H Uncoiler And Straightener Combo Machine For Metal Coil Feeding Line
GL-500H is the type of combined decoiler and straightener machine. The equipment can decoiling and straightening sheet metal with the thickness 0.5mm to 4.5mm.
With pneumatic pressure on straightener roller and worm gear adjusting, it can achieve presicion straightening for many kinds of material.
The combined structure can make better synchronization of decoiling and straightening and save more work space.
Description
Decoiler Section
1, Decoiler with hydraulic expansion and the surface is treated by blackening;
2, Pressing arm to press coil;
3, Supporting arm with pneumatic to lift coil and the induction pole to help feed speed controlling;
4, Coil inlet arm to make the coil into the feeding inlet easily;
5, Hand wheel to control the stop rollers which can allocate the strip. Worm & gear adjustment to adjust the gap between straightener rollers, which makes the operation easier and more precision performance;
6, Feeder outlet with cambered shape to make the coil strip go into the feeder machine easily;
7, Control systerm;
Specification
Model |
GL-300H | GL-400H | GL-500H | GL-600H |
Coil width(mm) | 300 | 400 | 500 | 600 |
Coil thickness(mm) |
0.5-4.5(6.0) |
|||
Coil weight(kg) | 2000 | 2000 | 3000 | 5000 |
Coil I.D(mm) | 460-520 | |||
Coil O.D(mm) | 1200 | |||
Speed(m/min) |
15 |
|||
Straightener roller |
4 on top / 3 on bottom Bottm rollers have drive function |
|||
Pinch roller | Inlet: 2 / Outlet: 2 | |||
Straightener motor(KW) | 2.2 | 2.2 | 4.4 | 4.4 |
Uncoiler motor(KW) | 1.5 | 1.5 | 1.5 | 2.2 |
Mandrel expansion | Manual Expansion (Hydraulic for optinal) | |||
Detail Photo Show
Application
GL-500H thick coil decoiler and straightener combo machine is widely used in metal stamping line with thickness from 0.5-4.5mm. It is suitable for the stamping of electric appliance, construction, furniture industry, clothing metal parts, auto parts etc.
GL-500H
exported to Dubai
Metal stamping solution suggestion:
GL-H+ NC Servo Feeder + Press
GL-H
GL-500H decoiler and straightener conbo machine
exported to Indonesia.
Metal stamping solution suggestion:
GL-H+ NC servo feeder + Press
Solution Application
GL-H decoiler and leveller combo machine is popular in electric appliance, construction, furniture industry, clothing metal parts, auto parts stamping etc.
