DBMT double head uncoiler for high speed press

Model: DBMT

Item specifics

Function: Coil Double Head Decoiler

Feature: Automatic Decoiler

Name: Automatic motorised Double mandrel Uncoiler Machin

Compact: straightener and servo feeder

Usage: DBMT Uncoiler

attribute: Double Coil Uncoiler Machine

Review

Description

DBMT double head uncoiler for high speed press

Photo Show

Description

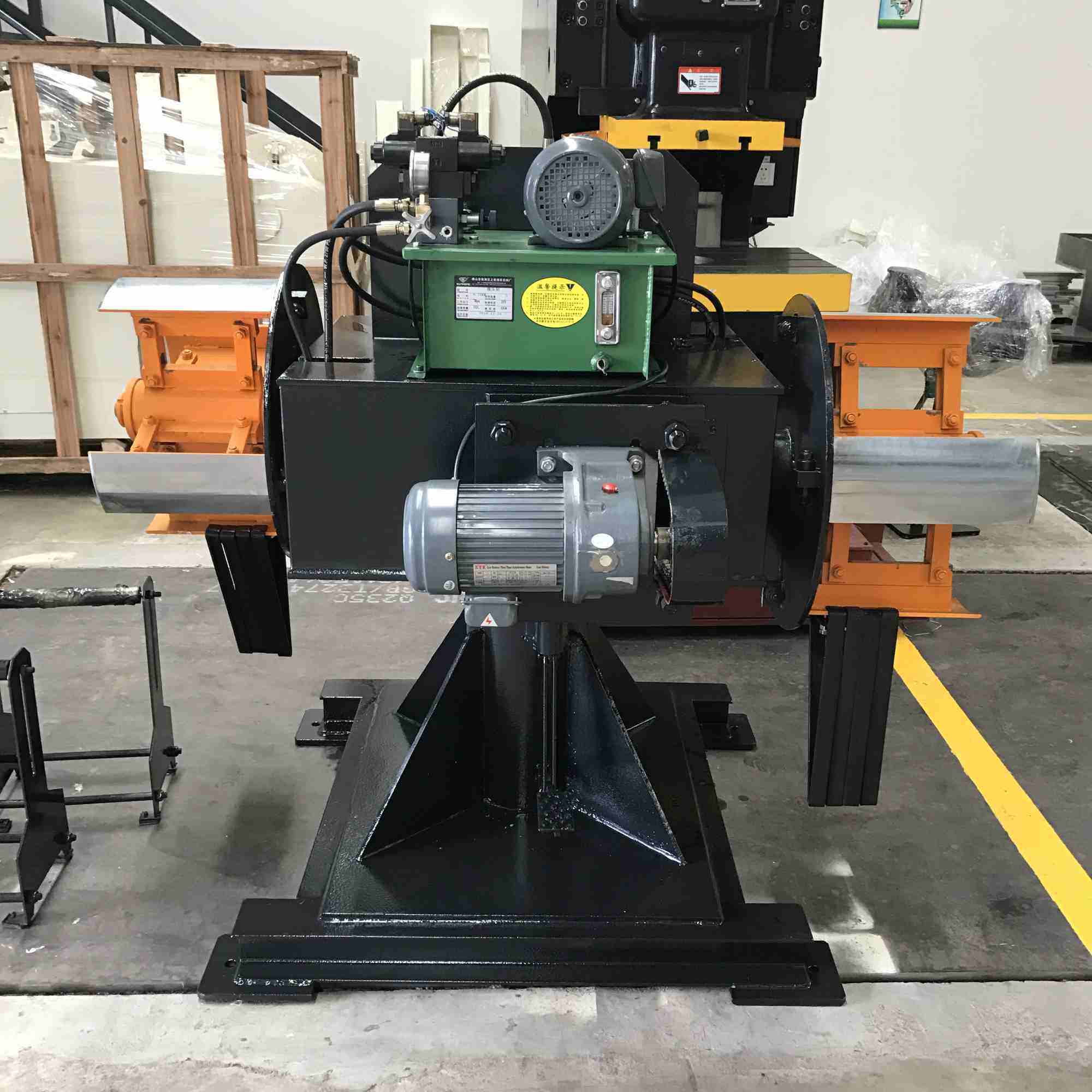

DBMT Double Head Decoiler Machine

1, Suits for sheet metal coil in thickness from 0.35mm to 1.6mm;

2, Used in high speed metal stamping line;

3, Works for material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;

4, Be able to work with S type straightener and high speed coil feeder;

5, With the manual or hydraulic expansion styles;

6, Suitable for fast punching as stator, ET stamping.

specification

Model	DBMT-200	DBMT-300	DBMT-400
Coil width(mm)	200mm	300mm	400mm
Coil thickness(mm)	0.35-1.6mm
Max outer dia(mm)	1200mm
Material inner dia(mm)	450-530mm
Material weight(kg)	1000kg per side	1500kg per side	2000kg per side
Roller pressure	Spring Type
Mandrel expansion	Manual expansion
Inveter	No

Application

DBMT double head decoiler (unwinder) machine often is used in fast punching line, equipped with S type leveler machine and high speed coil feeder. It can handle with the metal sheet coil as aluminum sheet, copper strip, stainless steel, carbon steel, mild steel, etc. Most of motor stator or EI piece will take this double head uncoiler for building the stamping line.

DBMT-200

Double head decoiler machine

for 200mm width metal coil sheet

for fast punching

exported to South Africa

Metal stamping solution suggestion:

Double head decoiler+straightener+feeder + Press
