Model
RNC-600

Item specifics

Function
metal strip roller servo feeder
Feature
for metal stamping line
Name
servo roller feeder machine
Compact
press machine for metal stamping
Usage
automatic feeding for metal coils
attribute
with international brand servo motor

Review

Description

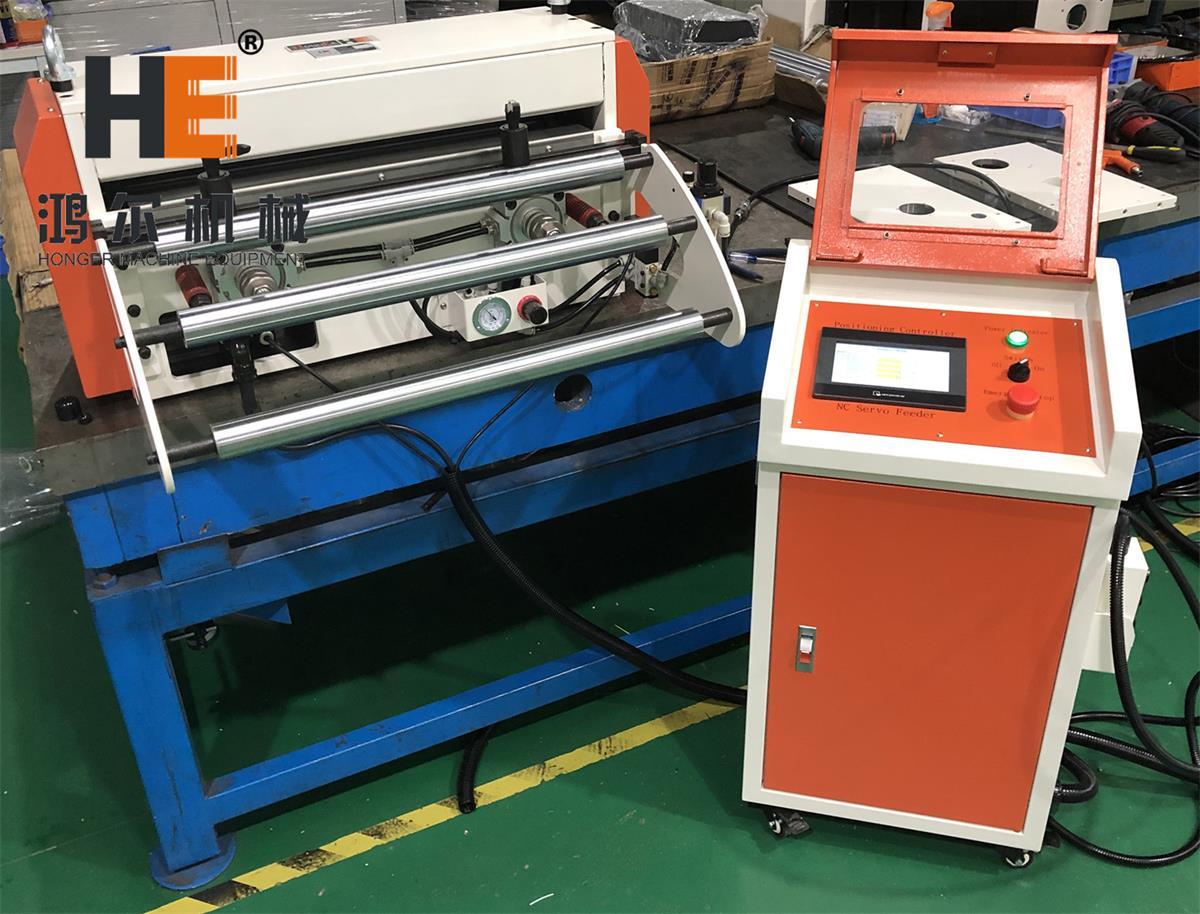

RNC-600 Automatic High Precision Servo Roller Feeder
RNC-600 servo feeder is one type of HongEr SERVO FEEDER with pneumatic release.
It can feed sheet metal coil material thickness 0.2-3.2 mm, width 600 mm, with max. feeding speed at 20m/min.
With Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

RNC Servo Feeder Details
Description
The raw material of the feeding rollers of RNC is GCr15, rollers surface finish adopts electroplated hard-chrome, surface hardness reaches HRC60±2.
It has 10 sections adjustment, and the feeding length/pitch is adjustable.
RNC-600 Servo Feeder Machine

1, Suitable for feeding metal coil thickness 0.2mm - 3.2mm, width 600mm;

2, Can be used to feed the metal material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;

3, With pneumatic release for progressive die stamping.

4, The bracket is optinal and the height can eb adjusted by the hand wheel.

5, High precision with +/-0.01mm feeding accuracy.


Specification
Model
RNC-200
RNC-300
RNC-400
RNC-500
RNC-600
Coil width(mm)
200
300
400
500
600
Coil thickness(mm)
0.2-3.2mm
Feed length(mm)
9999.99mm
Speed(m/min)
20m/min
Feed accuracy
+/- 0.1mm
Roller pressure
Spring Type
Releasing system
Pneumatic Type
Feeding line adjustment
80-150mm
Power supply
AC220/1 PHASE
Application
RNC-600 automatic servo feeder machine is often compacted with metal decoiler, straightener and press machine in the metal stamping line. It can feed sheet metal coil at thickness up to 6.0mm, with max. feeding speed 20m/min. It is widly used the stamping line of electric appliance, construction, furniture industry, clothing metal parts etc.
RNC-600

RNC-600 pneumatic servo feeder
exported to Poland.





Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press

RNC-600

RNC-600 pneumatic servo coil feeder
exported to Thailand.




Metal stamping solution suggestion:
Decoiler & Straightener + NC servo feeder + Press
