GL-400 Uncoiler And Straightener For Automatic Feeding Line In Press Room

Group 2 in 1 Uncoiler Straightener
Min. Order 1 piece
Terms of Payment all
Update Time 2019-03-12
Item specifics
Functioncombined decoiler straightener machine
Featureautomatic uncoiling and straightening
Name400mm width decoiler and straightener machine
Compactservo coil feeder machine
Usagedecoiling and straightening in press room
attributeby inverter controlled
Description
GL-400 Uncoiler And Straightener For Automatic Feeding Line In Press Room
Description
Decoiler Straightener

1, Decoiler for coil unwinding;

2, Coil keeper to allocate the coil sheet;

3, Manul expansion, and hydraulic expansion is optional;

4, Straightener to make coil strip flatness;

5, Worm & gear adjustment to adjust the gap between straightener rollers, which makes operation easier and more precision performance;

6, Control handle to operate uncoiler straightener machine.

specification
Model
GL-200
GL-300
GL-400
GL-500
GL-600
Coil width(mm)
200
300
400
500
600
Coil thickness(mm)
0.3-3.2
Coil weight(kg)
600
1000
1500
2000
2000
Coil I.D(mm)
460-520
Coil O.D(mm)
1200
Speed(m/min)
15
Straightener
roller
4 on top / 3 on bottom
Bottm rollers have drive function
Pinch roller
Inlet: 2 / Outlet: 2
Motor(KW)
1
2
2
3
3
Mandrel Expansion
Manul or hydraulic
Application
GL is one type of combined decoiler and straightener machine of HongEr metal stamping equipment. It is used to be equipped with servo coil feeder for automatic feeding in press room. It works for metal coils to realize automation feeding line for metal stamping.
GL

GL-400 2 in 1 decoiler straightener machine

exported to Poland


Metal stamping solution suggestion:
Uncoiler straightener + NC servo coil feeder + Press
Solution suggestion

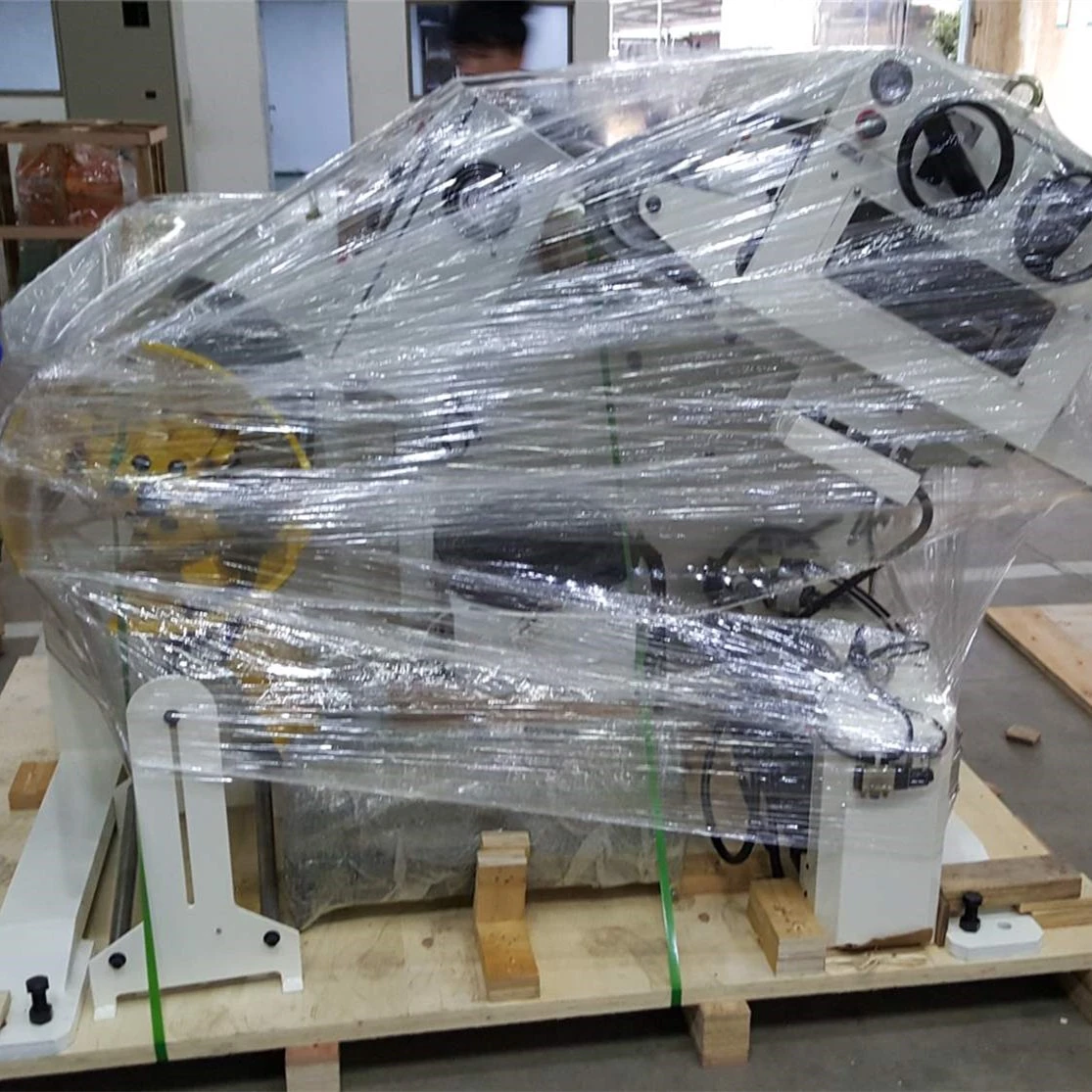

Package & Delivery
